Copper Jumpers
Copper Jumpers
Copper Jumpers are manufactured from high quality copper sheets they are also known as Earth Continuity Strap, Flange Bonding Jumpers, Flange Jumpers, Bonding Jumper, Flange Earthing Jumpers, Grounding Jumpers, and Earthing Jumpers.
Copper Sheets of desired thickness are sliced in required width then punched and bent as per customized designs.
Surface of application of Copper Jumpers is usually other than copper, so to avoid metal corrosion earthing jumpers are suggested to be tin plated. However, without plating is also demanded in various industry.
At OMKAR we have Widest Range of Copper Jumpers manufactured as per Standard or Customized design.
| Manufacturing Range | |
|---|---|
| Standard Flange Class | #150 , # 300, #600, #900 |
| Standard Flange Size | 1/2 " to 16 " |
| Standard Length | 100 mm to 800 mm |
| Standard Hole Size | 8 mm to 53 mm |
| Standard Type | Bare Jumper , Tin Jumper |

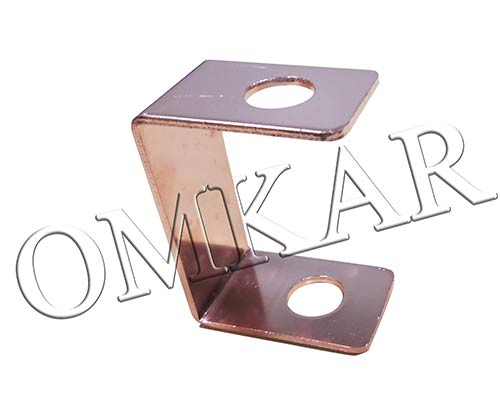

| Jumper Design | With Bend , Without Bend |
| Strip Thickness Option | 0.5 mm to 3 mm |

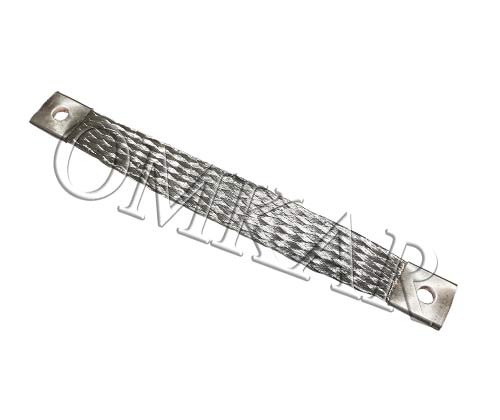

Braided Copper Jumpers
Braided CopperJumpers are manufactured from high quality copper braids they are also known as Earth Continuity Strap, Flange Bonding Jumpers, Flange Jumpers, Bonding Jumper, Flange Earthing Jumpers, Grounding Jumpers, and Earthing Jumpers.
At OMKAR we have Widest Range of Copper Jumpers manufactured as per Standard or Customized design.
| Manufacturing Range | |
|---|---|
| Standard Flange Class | #150 , # 300, #600, #900 |
| Standard Flange Size | 1/2 " to 16 " |
| Standard Length | 100 mm to 800 mm |
| Standard Hole Size | 8 mm to 53 mm |

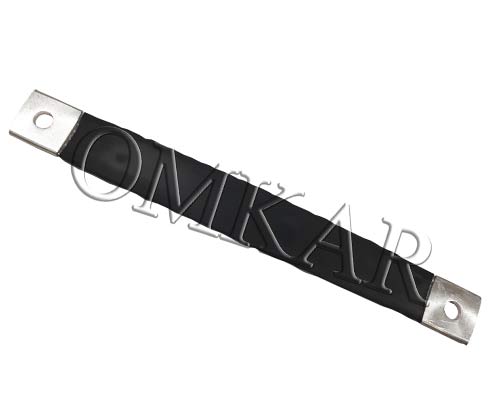

| Standard Type | Bare Jumper , Tin Jumper , Insulated Jumper |
| Braid Area Option | 6 sq. mm to 100 sq. mm |
| Terminal Width Option | 10 mm to 75 mm |
